Durable and lightweight, portable, designed based on tablet computer principles, specifically for outdoor environments

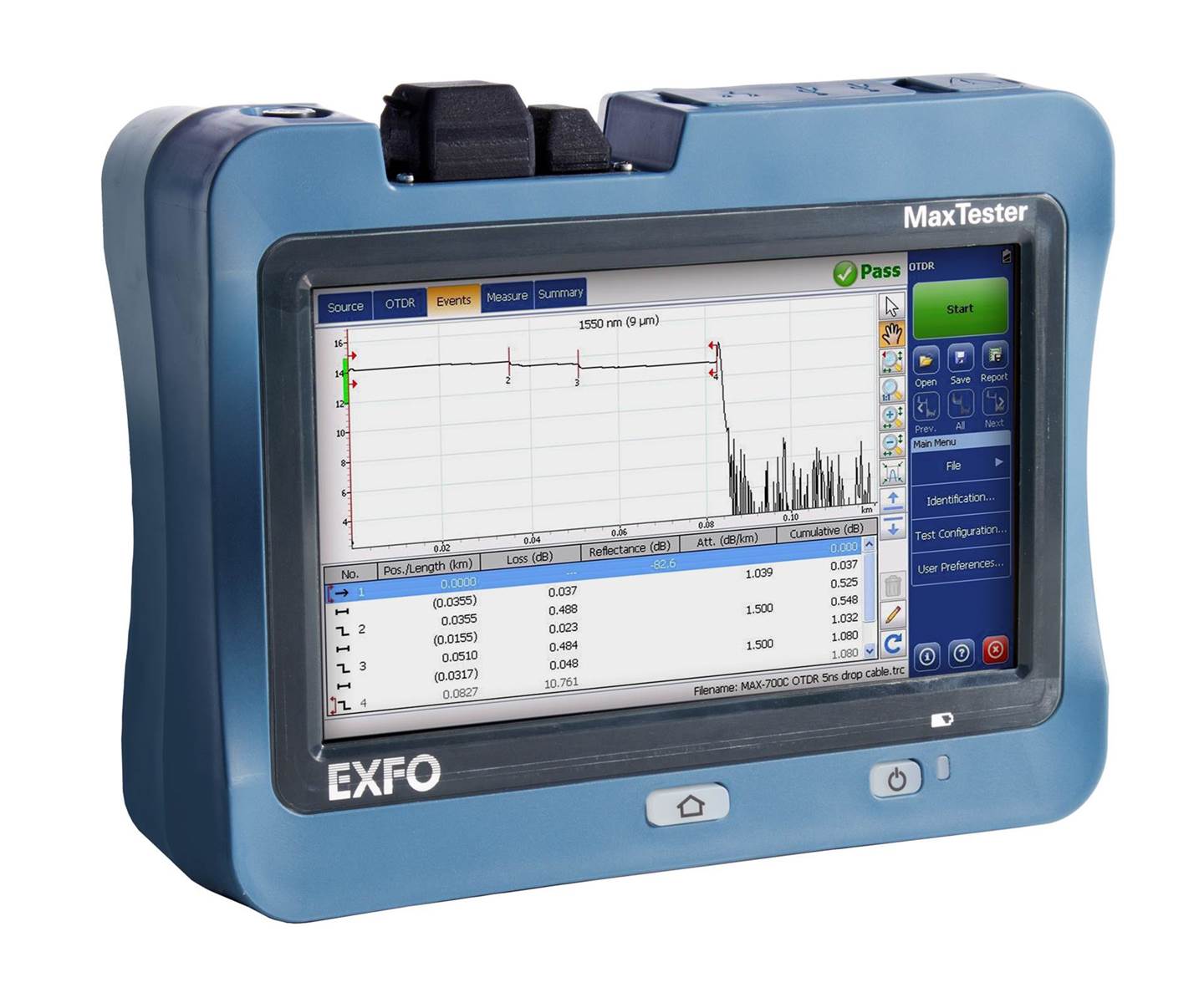

7-inch outdoor enhanced touch screen
Up to 12 hours of battery life
Short blind spots: Event blind spot/Attenuation blind spot: 0.5/2.2m, PON blind spot: 30m
Dynamic range of single mode up to 39dB, testing up to 132 km point-to-point (P2P) link

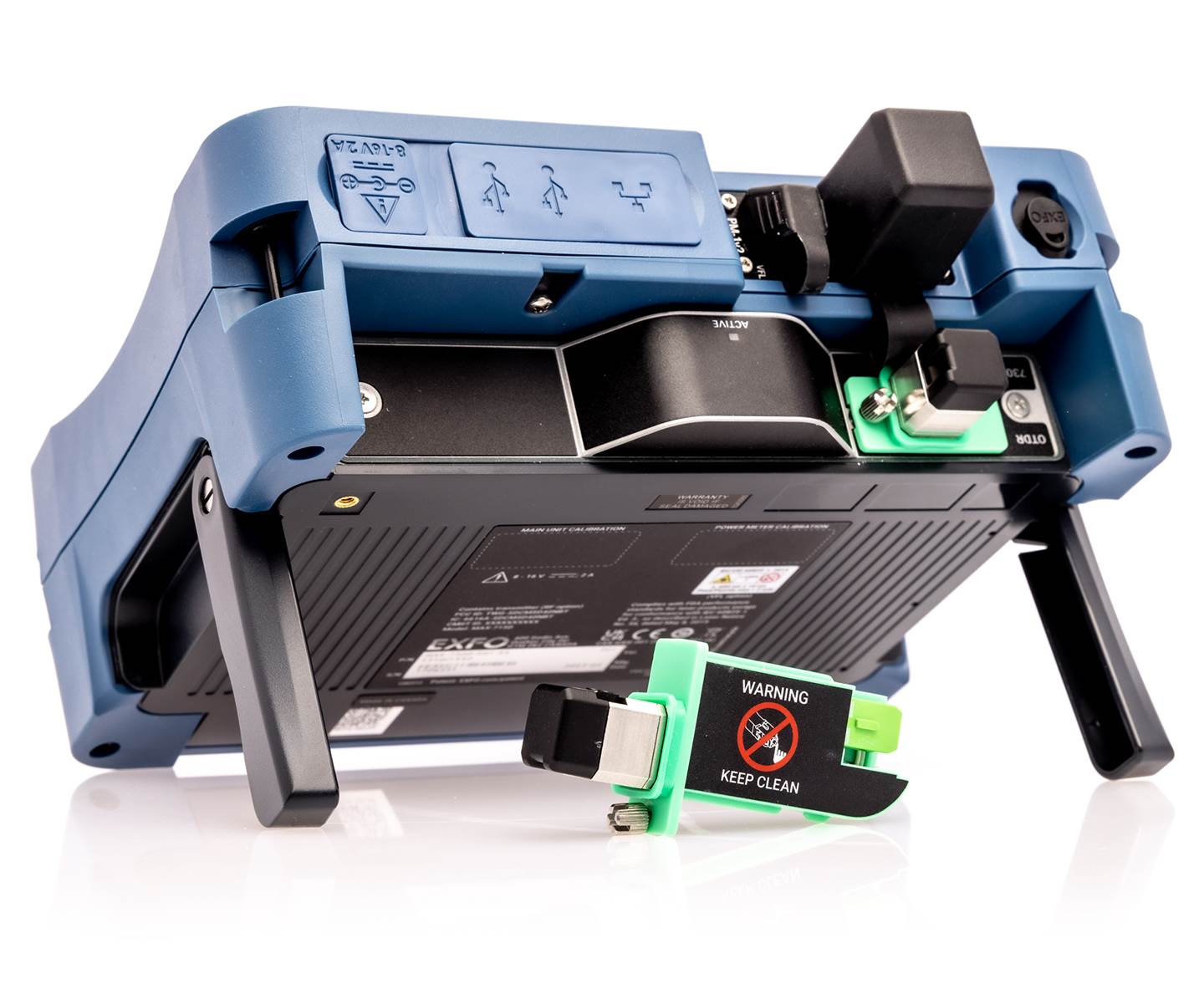

Uses Swap-Out (replaceable) connector, allowing replacement when necessary, without the need for factory return or repair
iOLM (Optical Eye): One-click operation, automatically performs multiple data collection processes, visual icons display pass/fail results
Three-wavelength testing at the same port (online + offline)

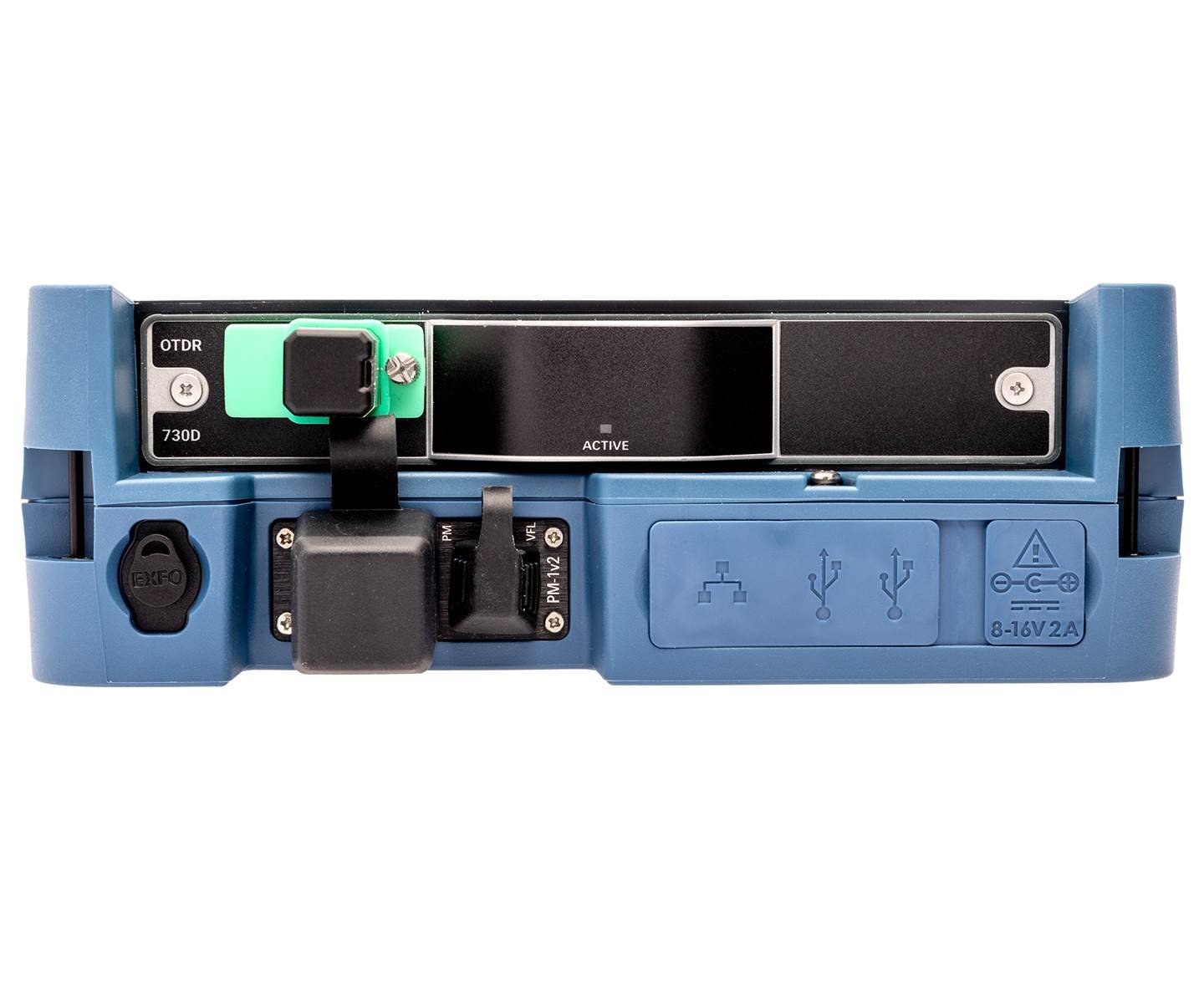

Supports OTDR, light source and power checker tests at the same port
Supports G.654E optical cable 1550nm/1625nm dual-wavelength testing
Filtering 1650nm FTTx online testing, optional online GPON/XGS-PON power meter
Wavelength (nm): 1310 ± 20 / 1550 ± 20 / 1625 ± 10 / 1650 ± 15, Online wavelength (nm): 1650
Dynamic range (dB): 39 / 39 / 39 / 39
Event blind zone (m): 0.5
Attenuation blind zone (m): 2.2
PON blind zone (m): 30
Sampling points: Up to 256,000
Distance uncertainty (m): ±(0.75 + 0.0025% x distance + sampling resolution)
Continuous operation for 12 hours
Display: 7-inch outdoor enhanced touch screen
Perform FTTx/PON tests through the splitter (up to 1x128)
FTTx service activation: GPON, EPON, XGS-PON, 10GE EPON
Access network/metro network testing (P2P)
Online fiber troubleshooting
Passive optical local area network (POL)
