Products: EXFO OT120 Series OTDR

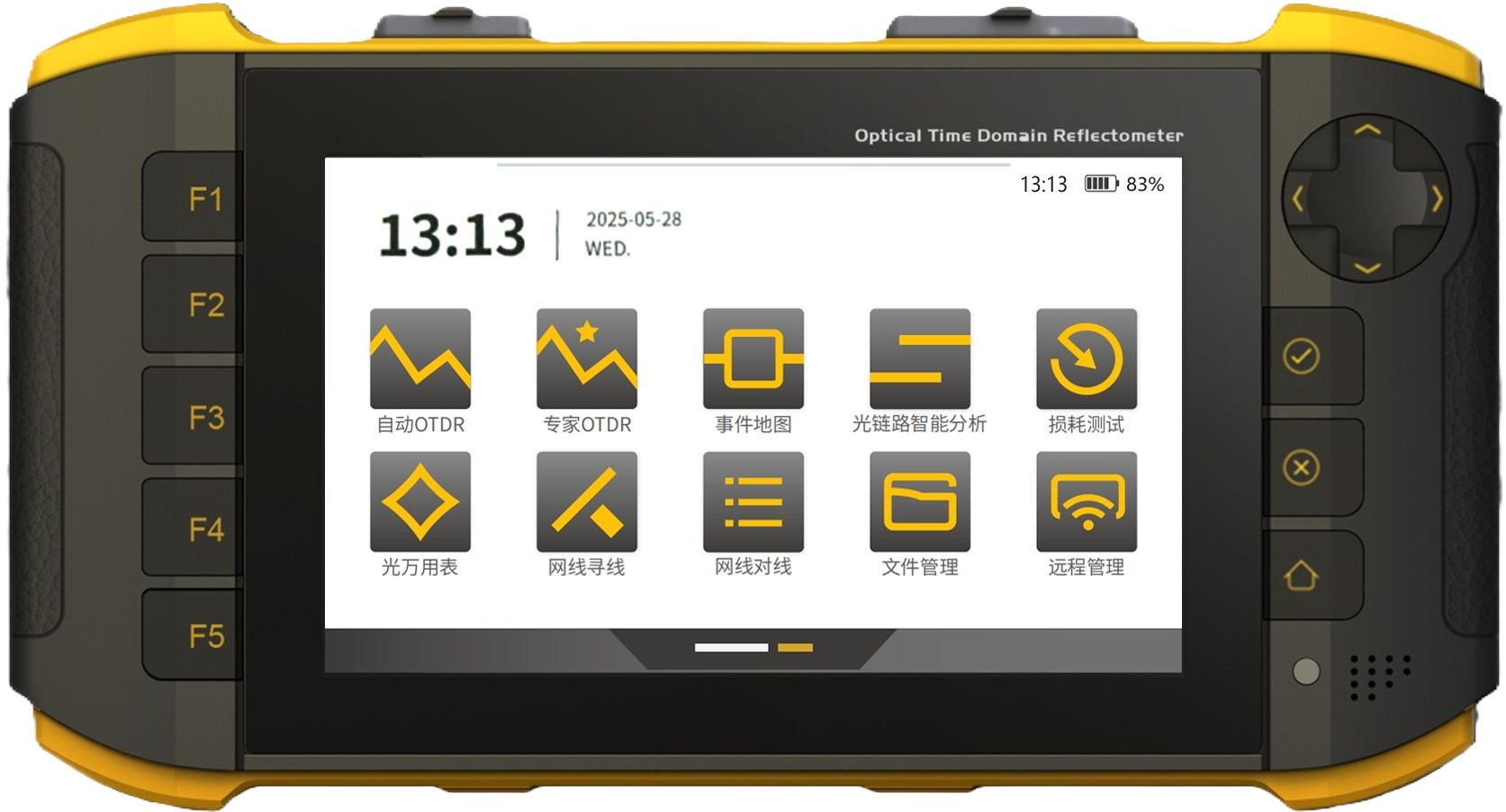

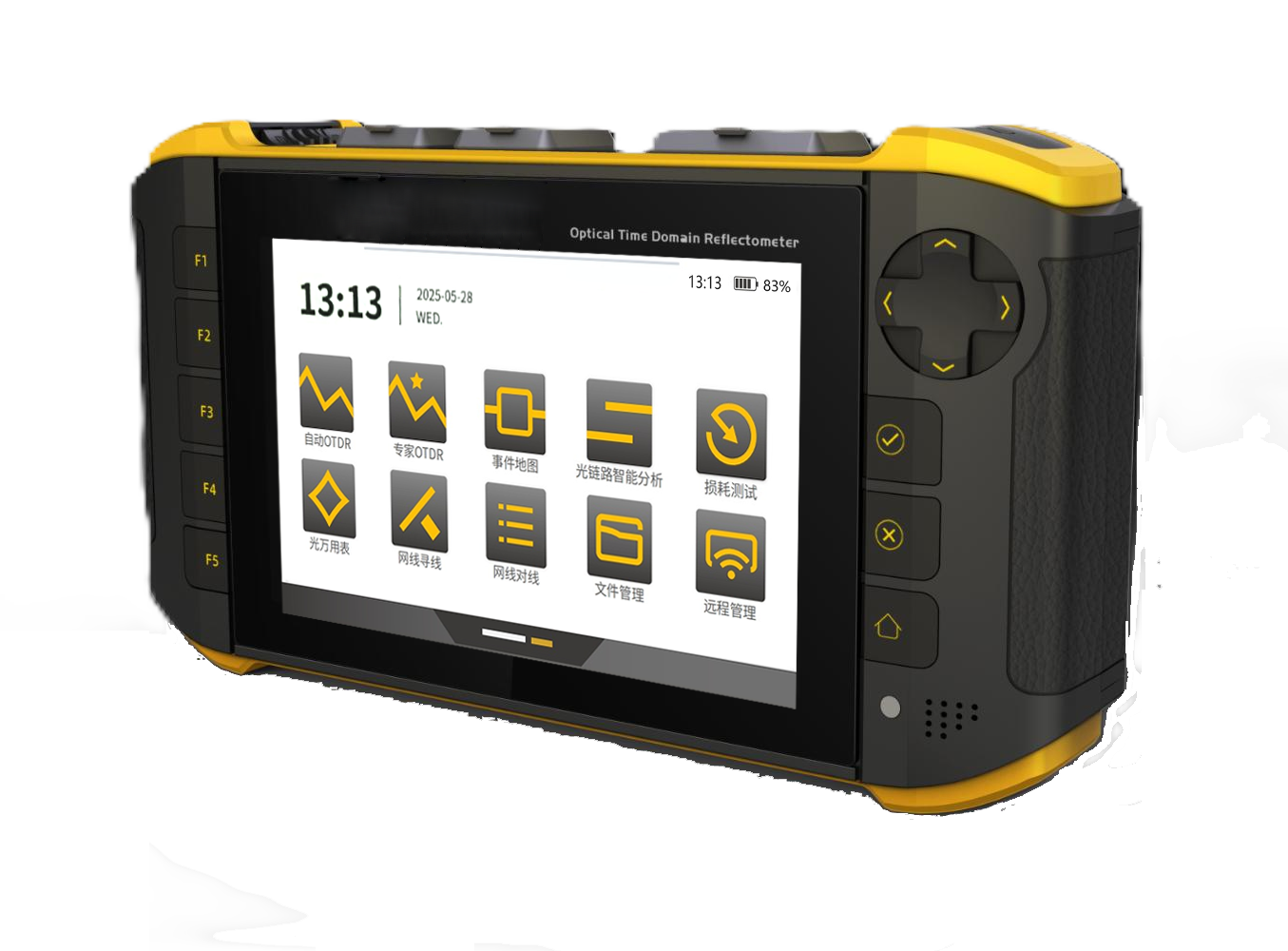

The OT120 series is a palm-sized optical time-domain reflectometer. It is lightweight and features an ergonomic design for a comfortable grip. It is equipped with a 5-inch color touch screen for clear display. It has a large dynamic range of dual wavelengths of 32/30 dB and a minimum blind zone of 2/8 meters. It is used to measure fiber breakpoints, lengths and losses. It integrates highly automatic OTDR, expert OTDR, event map, intelligent optical link analysis, loss test, optical multimeter, network cable tracing, network cable pairing, file management, remote management and other functions.

Download
Product Features Product parameters Application Scenarios

Handheld OTDR, dual operation by buttons and touch

Large dynamic dual-wavelength 32/30 dB

Minimum blind zone: 2/8 m

Support automatic OTDR / expert OTDR / PON OTDR

Wavelength-separated optical power meter, supporting 8-wavelength measurement, with simultaneous display of 1490 & 1577 dual wavelengths.

Built-in network cable testing function, supports use in combination with line tracing and sequencing instruments.


Fiber Optic Access (FTTx) Network Installation and Troubleshooting
