Dynamic range up to 45dB, capable of testing point-to-point (P2P) links up to 144km or 1*128 PON networks
Event blind zone/attenuation blind zone: 0.5m/2.0m, PON blind zone 25m

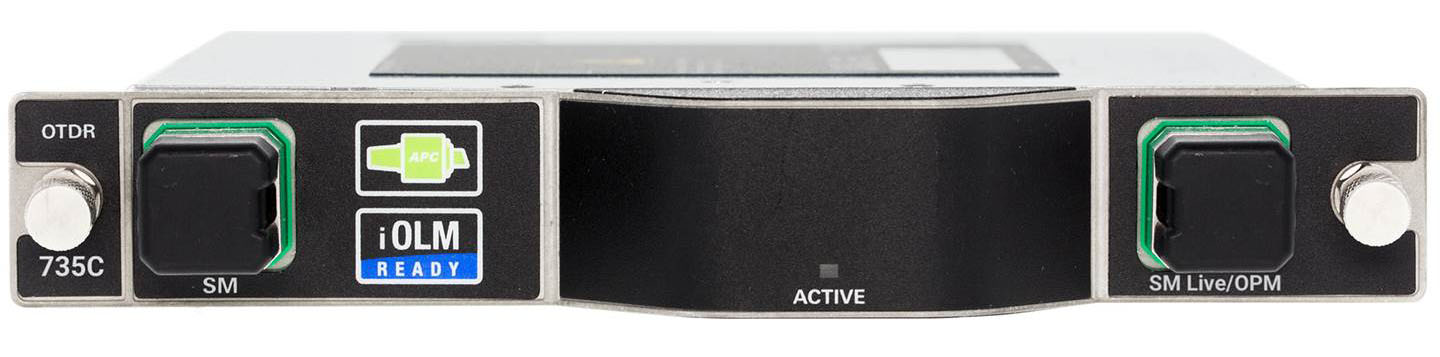

Uses Swap-Out (replaceable) connectors, allowing replacement when necessary without the need for factory return or repair

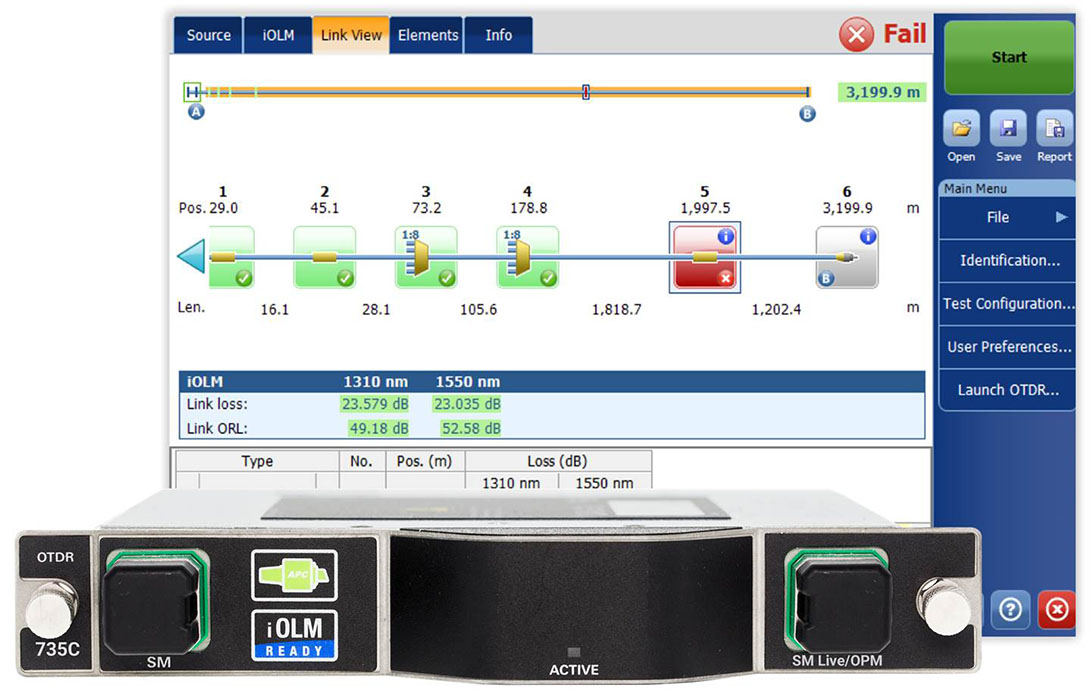

iOLM (optical eye): One-click operation, automatically performs multiple data collection processes, with visual icons indicating pass/fail
Supports multi-core MPO and MTP optical cable identification and fault diagnosis
Three-wavelength testing at the same port (online + offline)
Supports OTDR, light source and online power checker tests at the same port
1650nm filtering FTTx online testing, optional 1490/1550nm PON power meter

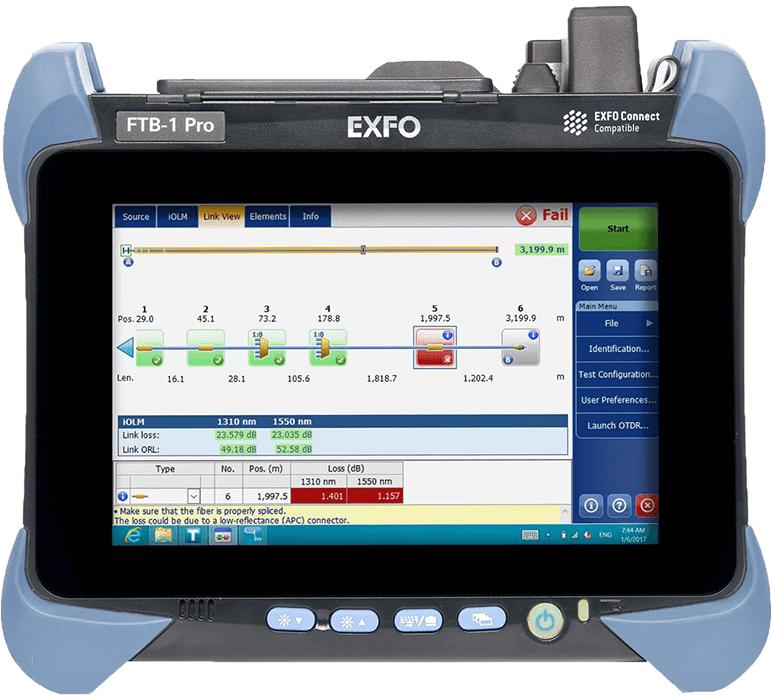

8 to 10.1-inch capacitive touchscreen; Windows 10 operating system, strong interconnection and remote connection capabilities
Supports single and multi-slot FTB-1 Pro/FTB-2 Pro/FTB-4 Pro platforms, with strong business expansion capabilities
Wavelength (nm): 1310 ± 20 / 1550 ± 20 / 1625 ± 10 / 1650 ± 5, Online test wavelength: 1650
Dynamic range (dB): 45 / 44 / 42 / 42
Event blind zone (m): 0.5
Attenuation blind zone (m): 2.0, PON blind zone (m): 25
Sampling points: Up to 256,000
Distance uncertainty (m): ±(0.75 + 0.0025% x distance + sampling resolution)
Testing challenges within the PON network for FTTx/MDU
Testing of metropolitan area network/core network (P2P)
Production line automation
